Cattle Feeders
Cattle Feeders have a special design that minimizes wasted feed. Sides and floor are welded and made of steel. Available in widths of 4,5, or 6' allowing you to feed what you want from small or big square bales to big square or round bales. Water Drainage slots on each end of feeder to prevent rain and water build-up. Treated stringers, 2"x 8", for easy transport around the yard.
Heavy Duty Feed Panels
- Available in 6, 8, 10, and 12 foot sections.
- 12 inches between bars are standard.
- Other bar spacing optional.
- Can be used three or four panels at a time.
- 50 inches high.
- Also available without kick guard for mounting.
- On concrete curb 44 inches high.
Bent lip on bottom allows for the unit to be fastened to a concrete base.
- Model #
- Length
- FP6
- 6ft
- FP8
- 8ft
- FP10
- 10ft
- FP12
- 12ft
Mini Calf Feeders
Sides and floor are welded and made of steel. Only 3 ft. wide to allow calves to clean the trough themselves and minimize wasted feed.
Water Drainage slots on each end of feeder to prevent rain/water build-up. Treated stringers, 2"x 8", for easy transport around the yard.
- Model #
- Length
- Width
- Slant Bar Opening
- MF8-3
- 8ft
- 3ft
- 16
- MF10-3
- 10ft
- 3ft
- 20
- MF12-3
- 12ft
- 3ft
- 24
- MF16-3
- 16ft
- 3ft
- 28
- MF20-3
- 20ft
- 3ft
- 32
- MF24-3
- 24ft
- 3ft
- 36
Standard Dry Feeders
Sides and floor are welded and made of steel. Available in widths of 4,5, or 6' allowing you to feed what you want from small or big square bales to big square or round bales.
Water Drainage slots on each end of feeder to prevent rain/water build-up. Treated stringers, 2"x 8", for easy transport around the yard.
- Model #
- Length
- Width
- Slant Bar Opening
- DF8-4
- 8ft
- 4ft
- 14
- DF12-4
- 12ft
- 4ft
- 22
- DF16-4
- 16ft
- 4ft
- 28
- DF20-4
- 20ft
- 4ft
- 34
- DF24-4
- 24ft
- 4ft
- 42
- DF8-5
- 8ft
- 5ft
- 16
- DF12-5
- 12ft
- 5ft
- 24
- DF16-5
- 16ft
- 5ft
- 30
- DF20-5
- 20ft
- 5ft
- 36
- DF24-5
- 24ft
- 5ft
- 44
- DF8-6
- 8ft
- 6ft
- 18
- DF12-6
- 12ft
- 6ft
- 26
- DF16-6
- 16ft
- 6ft
- 32
- DF20-6
- 20ft
- 6ft
- 38
- DF24-6
- 24ft
- 6ft
- 46
Slant Bar Feeder Trailer
- All steel, all welded frame.
- Wheels and pole hitch for easy maneuverability.
- Water drainage slots.
- Pole hitch is extendable to stay out of cattle's way.
- Adjustable stands on front of feeder for easy leveling.
- Model #
- Length
- Width
- Slant Bar Openings
- SBT 12-4
- 8ft
- 4ft
- 22
- SBT 16-4
- 16ft
- 4ft
- 28
- SBT 20-4
- 20ft
- 4ft
- 34
- SBT 12-5
- 12ft
- 5ft
- 24
- SBT 16-5
- 16ft
- 5ft
- 30
- SBT 20-5
- 20ft
- 5ft
- 36
Green Feed Racks
- All steel side "A" frames.
- 2in floor, 6ft 8in wide.
- Available in 18ft, 20ft, and 22ft.
- All bolted and painted.
- 3ft x 8in stringers.
- Model "A" is 7ft high.
- Model "B" is 6ft high (shown).
- Model #
- Length
- Width
- Height
- GF18A
- 18ft
- 6ft 8in
- 7ft
- GF20A
- 20ft
- 6ft 8in
- 7ft
- GF22A
- 22ft
- 6ft 8in
- 7ft
- GF18B
- 18ft
- 6ft 8in
- 6ft
- GF20B
- 20ft
- 6ft 8in
- 6ft
- GF22B
- 22ft
- 6ft 8in
- 6ft

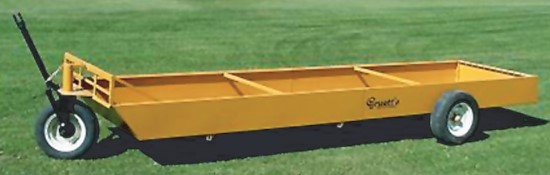

Dolly Wheel Feeder
- All steel, all welded frame.
- Front dolly wheel for easy maneuverability.
- Water drainage slots.
- Simple/durable design.
Available without slant bars.
- Model #
- Length
- Width
- Slant Bar Openings
- SBD 12-4
- 12ft
- 4ft
- 20
- SBD 16-4
- 16ft
- 4ft
- 26
- SBD 20-4
- 20ft
- 4ft
- 32
- SBD 12-5
- 12ft
- 5ft
- 22
- SBD 16-5
- 16ft
- 5ft
- 28
- SBD 20-5
- 20ft
- 5ft
- 34
Standard and Mini Fence Line Feeders
- Trough is all steel and easy to fill with mixer-trailer or forage rack.
- Slant bar can be used for fence line feeding or feeding in calf and young stock buildings.
- Legs provide easy cleaning under the unit.
- Bent lip on legs allow for the unit to be fastened to a concrete base.
- Water drainage holes on either end of feeder to prevent water build-up.
Standard Fence Line Feeder Trough Width of 30"
Mini Fence Line Feeder Trough Width of 24"
Mini Fence Line Feeders
- Model #
- Length
- Width
- Slant Bar Openings
- MFLF8
- 8ft
- 24in
- 6
- MFLF10
- 10ft
- 24in
- 8
- MFLF12
- 12ft
- 24in
- 10
- MFLF16
- 16ft
- 24in
- 13
- MFLF20
- 20ft
- 24in
- 16
Standard Fence Line Feeders
- FLF8-3
- 8ft
- 30in
- 5
- FLF10-3
- 10ft
- 30in
- 7
- FLF12-3
- 12ft
- 30in
- 9
- FLF16-3
- 16ft
- 30in
- 12
- FLF20-3
- 20ft
- 30in
- 15

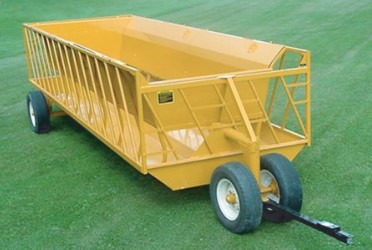

- Model #
- Length
- Features
- Options
- FAW-BS15
- 15ft
- "B" slant bar wagon, 6 bolt, single rear axle ext. pole, 2in spindles, full 15ft of feeding area.
- All contain steel insert, 18in fold down screen extensions.
- FAW-BS20
- 20ft
- "B" slant bar wagon, 6 bolt, single rear axle ext. pole, 2in spindles, full 20ft of feeding area.
- All contain steel insert, 18in fold down screen extensions.
- FAW-BS25
- 25ft
- "B" slant bar wagon, 6 bolt, single rear axle ext. pole, 2in spindles, full 25ft of feeding area.
- All contain steel insert, 18in fold down screen extensions.
- FAW-BT25
- 25ft
- "B" slant bar wagon, 6 bolt, oscillating tandem rear axle ext. pole,2in spindles, full 25ft of feeding area.
- All contain steel insert, 18in fold down screen extensions.
For pricing and availability call your local Gruett's dealer. Designs and specifications are subject to change without notice. Dealer Inquiries welcome, for information on how to get involved contact Tom Gruett at tomg@gruettsinc.com or (920) 853-3516.
